Custom Specialty Electric & Three Phase Motors
Custom 3-Phase AC Induction, Synchronous, Wound Rotor & DC Electric Motors Up to 20,000 HP for Severe Duty Applications Worldwide.
Precision-Engineered 3-Phase Industrial Electric Motors
Louis Allis specializes in the engineering, custom design, and manufacturing of severe-duty three-phase industrial electric motors tailored for the world's most demanding procurement specifications. From single one-off engineered replacements to large industrial production runs, our facility builds robust electrical machinery capable of exceeding standard NEMA, IEEE, and IEC operational boundaries.
Our engineering capabilities cover AC Squirrel Cage Induction Motors, AC Wound Rotor Motors, AC Synchronous Motors, and Large Industrial DC Motors. Furthermore, Louis Allis is officially certified for MIL-STD-2037 Navy Sealed System Windings, guaranteeing that our marine and defense electrical drive solutions meet strict environmental and operational thresholds required for continuous oceanic duty.
When legacy motor manufacturers discontinue support for mature equipment, industrial plants turn to Louis Allis for direct drop-in, exact mechanical and electrical fit-and-function replacement motors.
Specialty Electric Motor Types & Duty Configurations
Engineered for high inertia loads, extreme operating temperatures, corrosive atmospheres, and high vibration industrial environments.
Ball Mill Motors
High starting torque 3-phase AC & DC drives designed to absorb severe thermal shock and high impact starting stress in mining and cement grinding operations.
Bow Thruster Motors

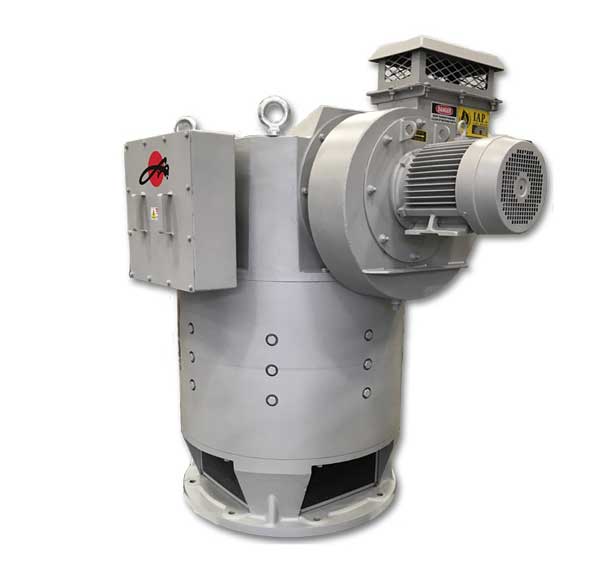

MIL-STD-2037 Navy Sealed VPI winding systems built for marine thrusters, dynamic positioning, and subsea propulsion installations.
Conveyor & Material Handling
Heavy-duty multi-speed and high-torque motor configurations built for continuous operation across mining, bulk loading, and port facilities.
Crusher & Pulverizer Motors
Design D high-slip, high-breakdown torque motors engineered with reinforced bearings and rugged cast iron frames to survive severe mechanical shocks.
Induced Draft (ID) Fan Motors
Custom high-inertia AC synchronous and induction fan motors constructed for fossil fuel power plants, steel mills, and heavy industrial boilers.
Kiln Drive & Large DC Motors
Precision variable-speed large frame DC motors and specialized AC gearhead drive units designed for smooth rotary kiln acceleration and steady torque.
Vertical & Horizontal Pump Motors
High-thrust vertical solid/hollow shaft motors and horizontal pump drives for water municipal treatment, petrochemical refining, and agricultural irrigation.
Winch, Hoist & Crane Motors
Intermittent duty, high starting torque motors featuring integrated mechanical brake mounts and accelerated thermal dissipation designs.
High-Speed & Compressor Duty
Precision balanced 2-pole and high-frequency motors (>3,600 RPM) engineered for centrifugal compressors, blowers, and gas processing equipment.
Engineering Specifications & Operational Range
Louis Allis specialty electric motors are custom manufactured to buyer specifications across a broad range of frame sizes, ratings, and enclosures.
| Parameter | Standard Capability Range | Specialty / Custom Engineering Options |
|---|---|---|
| Horsepower Range | 100 HP to 5,000 HP | Custom builds up to 20,000 HP (15,000 kW) |
| Voltage Ratings | 230V / 460V / 575V / 2,300V / 4,160V | Medium & High Voltage up to 13,800V (13.8 kV) |
| Electrical Phases | 3-Phase AC / Direct Current (DC) | Synchronous, Wound Rotor & Special Multi-Speed Windings |
| Enclosure Types | TEFC, ODP, WPI, WPII | TEWAC, TEAAC, Explosion-Proof (Class I/II Div 1 & 2, ATEX) |
| Insulation Class | Class F with Class B Temperature Rise | Class H, VPI Sealed (MIL-STD-2037 Navy Submersible Windings) |
| Frequency / Speed | 50 Hz / 60 Hz (900 RPM to 3,600 RPM) | Variable Frequency Duty (VFD), High-Speed (>3,600 RPM) |
| Frame Sizes | NEMA 440 to 6800 Series | Above NEMA, Custom Fabricated Drop-In Replacement Frames |
Engineering Solutions For Critical Industrial Operations
Explore how our Warrior, Alabama facility addresses complex engineered motor replacements, OEM obsolescence, and emergency procurement.
Custom Electric Motor Manufacturing
Louis Allis designs and manufactures custom three-phase electric motors from the ground up for OEMs and plant end-users. Our electrical and mechanical design engineers utilize advanced 3D CAD modeling and electromagnetic finite element analysis (FEA) to deliver tailored motor performance curves matching your exact driven equipment.
- Custom Shaft Extensions & Mounting Dimensions
- Special Torque Speed Characteristics (Design D, High Inertia)
- Reinforced Bearing Systems (Sleeve & Anti-Friction)
- Severe Duty Corrosion-Resistant Exterior Coatings
Drop-In "Fit and Function" Replacements
Replacing obsolete or aging specialty electric motors often presents structural and alignment challenges. Louis Allis reverse-engineers legacy units from any global OEM manufacturer (GE, Westinghouse, Siemens, ABB, Reliance, Toshiba, etc.) to fabricate a brand-new electric motor that drops directly onto existing mounting pads, piping, and electrical conduits without plant modifications.
Save millions in structural retrofits and civil engineering costs by sourcing direct drop-in replacement motors designed to match historical foot-to-shaft centerlines and shaft dimensions precisely.
Factory Recertification Program
When lead times for a brand-new motor build are incompatible with project schedules, our Factory Recertification Program offers a reliable, cost-effective alternative. We remanufacture surplus or legacy motor cores back to original OEM factory specs with new VPI insulation systems, dynamic balancing, and comprehensive full-voltage load testing.
All Louis Allis Factory Recertified Motors include a Full One-Year Warranty, providing new-motor reliability at a fraction of the cost and lead time.
Original Legacy Louis Allis Design Archives
With over 2 million specialty motors manufactured over our 120-year history, Louis Allis maintains an extensive archive of proprietary engineering drawings, winding datasheets, and structural blueprints. We provide genuine replacement parts, exact rewinds, and original duplicate builds for legacy installed machinery operating in power stations, mines, and naval vessels across the globe.
Request Technical Specifications & Specialty Motor Catalog
Consult with our Warrior, Alabama engineering team for custom 3-phase motor quotes, drop-in replacement drawings, and complete product documentation.
