Precision VFD & AC Motor Portfolio
High-torque, high-efficiency frequency variable drive motors engineered for extreme industrial duty, complete IEC compliance, and seamless grid integration across France.
Engineering Whitepaper: Next-Generation Variable Frequency Drive (VFD) Motor Architecture for French Industrial Ecosystems
Modern industrial operations across France—from automotive robotics manufacturing in Hauts-de-France to chemical processing complexes in Marseille-Fos—demand unprecedented operational efficiency, ultra-precise speed control, and uncompromising reliability. As the European Union tightens energy efficiency benchmarks under the EcoDesign Directive (EU 2019/1781), standard fixed-speed induction motors are rapidly giving way to custom-engineered OEM Variable Frequency Drive (VFD) motor systems.
A Variable Frequency Drive motor is not simply a standard induction motor coupled with an inverter card. Operating electric motors under high-frequency Pulse Width Modulation (PWM) voltage waveforms subjects the stator windings and bearing assemblies to severe electrical and thermal stress. Pulse rise times ($dV/dt$) generated by modern Insulated Gate Bipolar Transistors (IGBTs) can cause voltage overshoot reflection waves, destructive shaft currents, and localized partial discharge. Our custom OEM VFD motors are designed ground-up to mitigate these phenomena, delivering continuous duty cycles under the harshest operational conditions.
Technical Insight: Corona-Shield Insulation & Bearing Longevity
Our inverter-duty motors feature Class H mica-glass reinforced copper windings subjected to 100% solid resin Vacuum Pressure Impregnation (VPI). This ensures a Corona Inception Voltage (CIV) exceeding 2,000 Volts, completely eliminating insulation breakdown caused by $dV/dt$ transients. Furthermore, insulated ceramic hybrid bearings (SKF INSOCOAT style) and Shaft Grounding Rings (SGR) are integrated as standard on frame sizes 280 and above to eliminate Electrical Discharge Machining (EDM) fluting.
Technical Superiority: Standard AC Motors vs. OEM Custom VFD Motors
When selecting drive motors for complex automated lines or high-pressure pumping stations, engineering teams in France must consider the fundamental mechanical and electrical differences between standard motors and dedicated inverter-fed systems:
OEM Custom VFD Motor System
- Insulation System: Class H (180°C) continuous rating with Inverter Spike Resistant (ISR) magnet wire.
- Thermal Dissipation: Auxiliary forced-ventilation blower (IC416 cooling) allowing 100% constant torque down to 0.5 Hz zero-speed.
- Bearing Protection: Internal grounding brushes + insulated non-drive end shield preventing EDM shaft breakdown.
- Dynamic Response: Low rotor inertia design tailored for ultra-fast acceleration/deceleration loops in vector control.
- Harmonic Resilience: Skewed rotor slots engineered to suppress spatial harmonics and lower acoustic noise under PWM.
Conventional Fixed-Speed AC Motor
- Insulation System: Standard Class F or B, prone to dielectric breakdown under IGBT voltage spikes.
- Thermal Dissipation: Shaft-mounted fan (IC411); cooling capacity degrades exponentially at reduced speeds.
- Bearing Protection: Uninsulated steel bearings vulnerable to bearing fluting caused by common-mode voltages.
- Dynamic Response: High rotor inertia designed primarily for line-start grid synchronization.
- Harmonic Resilience: High thermal buildup and severe magnetostrictive hum when driven by non-sinusoidal VFD power.
Localized Application Scenarios Across French Industry
Custom OEM VFD motor solutions optimized for France's core industrial sectors, regulatory standards, and regional manufacturing hubs.
Automotive Manufacturing (Hauts-de-France & Île-de-France)

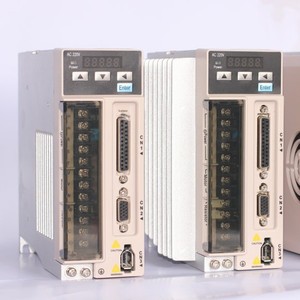

Providing high-dynamic response servo kits (such as the 80ST-H02430 series) and vector-controlled VFD induction motors for automated body-in-white stamping presses, robotic assembly conveyances, and paint shop ventilation systems in major plants across Valenciennes, Douai, and Flins.
Petrochemical & Refinery ATEX Zones (Marseille-Fos & Normandy)

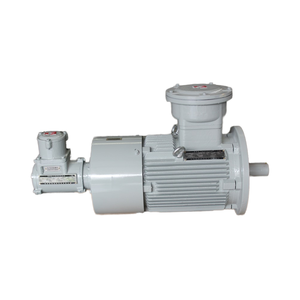

Deploying heavy-duty explosion-proof motors (YBBP Series 280KW) certified under ATEX Directive 2014/34/EU and EAC standards. Designed to operate safely in volatile hydrocarbon gas atmospheres (Zone 1 / Zone 2) for crude oil transfer pumps, gas compressors, and cracking tower blowers.
Water Management & Pumping Grids (Veolia / Suez Networks)
Custom multi-phase 380V/400V variable speed drives engineered for municipal water distribution and wastewater processing plants across Greater Paris, Lyon, and Bordeaux. Delivers smooth pressure maintenance, eliminates water hammer effect, and reduces electrical grid peak demands.
Aerospace Testing & Tooling (Toulouse Aerospace Valley)
Supplying ultra-precise 400Hz frequency converter systems (Georator technology) and low-noise VFD motor drives for aircraft hydraulic test benches, wind tunnel turbine drives, and advanced composite material machining centers serving Airbus supply chains.
Agri-Food Processing & Refrigeration (Brittany & Grand Est)
Washdown-duty IP66/IP69K stainless-frame variable frequency motors tailored for food processing automation, industrial freezing compressors, and bottling plants, complying strictly with French ANSES hygienic directives and European food safety regulations.
Nuclear Auxiliary Systems & Power Gen (EDF Infrastructure)
High-reliability, custom-wound Above-NEMA AC and DC motors built up to 20,000 HP. Engineering certified to IEEE, IEC, and MIL-SPEC standards for cooling tower auxiliary pumps, secondary circuit fans, and emergency backup power frequency converters.
France Industrial Trends: Decarbonization, CEE Energy Audits & Industry 4.0
France’s national industrial strategy—driven by the France 2030 investment plan and strict European Green Deal objectives—is accelerating the transition toward smart, energy-efficient motion systems. Motor-driven systems account for over 65% of total electrical energy consumed in French manufacturing plants. Consequently, optimizing motor drive efficiency is the single most impactful lever for operational cost reduction and carbon footprint minimization.
CEE Rebate Compatibility
French industrial facilities leveraging VFD retrofits qualify for Certificats d'Économies d'Énergie (CEE) subsidies (e.g., IND-UT-102 for speed variation on electric motor systems). Our IE4/IE5 ultra-premium efficiency VFD motors maximize financial rebates for French plant operators.
Modbus / PROFINET IoT Integration

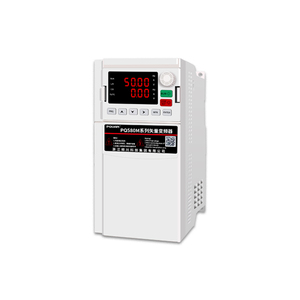

Our modern inverter solutions (such as the PQ580M and Vector Control single/three-phase drives) feature embedded communication protocols (RS485 Modbus, CANopen, PROFINET) enabling real-time telemetry streaming to centralized French SCADA architectures.
Predictive Maintenance & Vibration
Incorporating integrated PT100/RTC thermal sensors and tri-axial vibration accelerometers inside motor end-shields allows French maintenance managers to transition from reactive repairs to predictive AI-driven maintenance schedules.
Why Global Procurement Leaders Choose Our OEM Custom VFD Motor Facilities
With over a century of manufacturing excellence—backed by the heritage of Louis Allis and WorldWide Electric—our facilities stand as an authoritative powerhouse in custom electric motor engineering. Operating from ISO 9001:2015 certified manufacturing plants, we specialize in delivering tailored AC and DC drive solutions up to 20,000 HP for the world's most demanding applications.
Century-Long Engineering Expertise
Founded in 1901, our engineering team brings more than 120 years of continuous innovation in specialty motor topology, magnetic circuit optimization, and high-voltage winding integrity.
Full One-Off & OEM Customization
Whether you require a single high-horsepower drop-in replacement motor with exact shaft/foot dimensions or a multi-thousand-unit OEM production run, our CNC machining and VPI plants adapt to your exact specs.
MIL-STD & Navy-Sealed Windings
We manufacture systems certified to rigorous military standards (MIL-STD-2037), featuring proprietary sealed winding systems designed for total water submersion and chemical resistance.
Georator Power Frequency Conversion
Home to Georator Permanent Magnet Generators and Rotary Frequency Converters, delivering ultra-clean 50Hz, 60Hz, and 400Hz frequency conversion for international research labs, defense, and industrial facilities.
Procurement & Technical FAQ for Buying VFD Motors Serving France
Direct, expert answers addressing voltage standards, ATEX certification, customs clearance, and application engineering for French buyers.
