Featured OEM/ODM Submersible Motors
Custom-engineered electrical submersible motors built for maximum hydraulic efficiency, thermal resilience, and long-term reliability under severe underwater operating pressures.

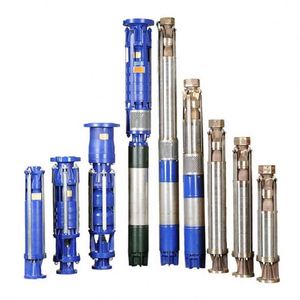

Advanced Wholesale Submersible Water Pump Motor
Turbine Submersible Fueling Motor (380V Explosion-Proof)

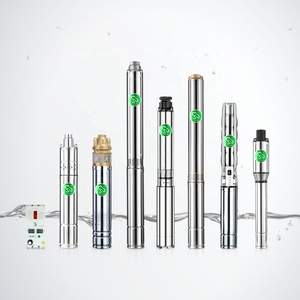

Factory 2HP 4-Inch Deep Well Submersible Electric Motor

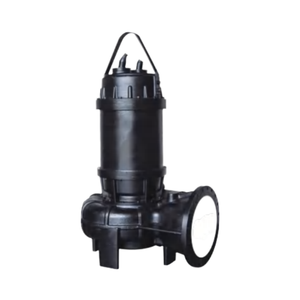

Anti-Clogging Stainless Sewage Motor with Cutting Mechanism
Blue Jacket Submersible Dispenser Motor for Gas Stations

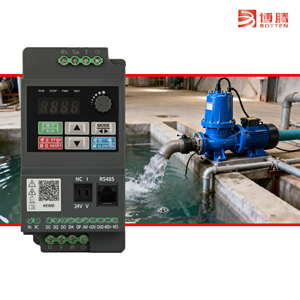

2.2kW V/F Control Three Phase VFD Duty Submersible Motor

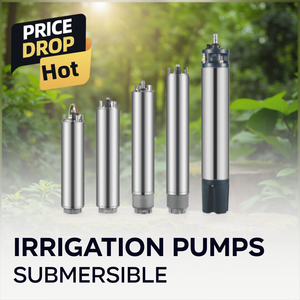

5kW Encapsulated Solar DC Motor for 200m Deep Well

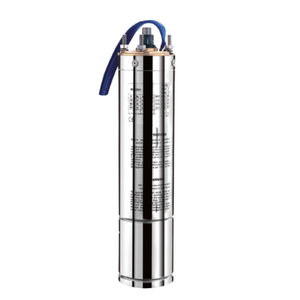

High-Efficiency Coverco Style Electric Submersible Motor
Engineering Principles of Submersible Motor Optimization
Electrical submersible motors (ESMs) represent the apex of fluid dynamics, electromagnetic design, and thermal dissipation engineering. Unlike standard surface-mounted industrial motors that rely on ambient air cooling via external fans (TEFC designs), submersible pump motors operate in continuous liquid immersion—demanding hermetic sealing, specialized dielectric cooling media, and dynamic hydrodynamic bearing assemblies capable of enduring immense downthrust forces.
As a premiere OEM/ODM submersible pump motors manufacturer and factory, our facility integrates advanced finite element analysis (FEA) and computational fluid dynamics (CFD) to craft custom stator-rotor configurations. Whether your project requires high-voltage 380V–415V three-phase deep-well motors, oil-filled anti-wear sewage drives, or hazardous-location ATEX fuel dispensing turbine units, our engineering core provides verified Information Gain to elevate operational efficiency and eliminate premature field failure.
Core Technical Differentiators: Water-Filled vs. Oil-Filled vs. Encapsulated Stator Motors
Understanding the internal electrical and thermal architecture is critical for B2B procurement specialists and municipal hydraulic engineers:
| Motor Sub-Type | Cooling & Lubrication Media | Stator Winding Architecture | Thrust Bearing System | Optimal Industrial Application |
|---|---|---|---|---|
| Deionized water & food-grade anti-freeze glycol mixture | Polypropylene / PE2+PA insulated magnet copper wire | Kingsbury-type hydrodynamic tilting-pad thrust bearings | Deep well agriculture, municipal potable water supply, high HP boreholes. | |
| Dielectric non-toxic white mineral oil | Class F or Class H enamel insulated copper with VPI treatment | Heavy-duty angular contact ball bearings / ceramic pads | High-torque sewage lift stations, drainage pumps, commercial fountains. | |
| Hermetically sealed solid resin/epoxy encapsulation | Fully potted stator core inside stainless steel 304/316 sleeve | Carbon-graphite dynamic sleeve bearings with ceramic journals | Zero-maintenance residential deep wells, high-pressure booster systems. | |
| Dielectric liquid / air-cooled explosion containment path | High-temperature Class H VPI magnet wire with thermal sensors | Precision pre-loaded double-shielded deep groove bearings | Gas station fuel dispensers, chemical processing, petroleum pumping. |
Tailored Submersible Motor Engineering (OEM & ODM)
We provide full-spectrum original equipment manufacturing (OEM) and original design manufacturing (ODM) services for global pump manufacturers, system integrators, and industrial distributors.
Hydraulic & Electrical Matching
Customization of torque speed curves, breakdown torque ratios, and starting current multipliers (KVA Code) optimized for VFD variable torque loads or soft-starter operation in agricultural and municipal pumps.
Metallurgy & Corrosion Resistance
Choice of casing materials ranging from Standard AISI 304 Stainless Steel to Marine-Grade AISI 316L, Duplex 2205, and Nickel-Bronze alloys for saline groundwater, offshore platforms, and acid mine drainage.
Sealing Integrity Systems
Custom double mechanical seal arrangements incorporating Silicon Carbide (SiC vs SiC), Tungsten Carbide (TC vs TC), and Viton elastomeric bellows paired with oil-chamber moisture detection probes.
Voltage & Frequency Flexibility
Global voltage compliance: 110V/220V/240V Single-Phase (50Hz/60Hz), 380V/415V/460V/660V Three-Phase, as well as High-Voltage DC (90V–750V DC) for direct-coupled solar MPPT pumping arrays.
VFD Heavy-Duty Insulation
Class H copper insulation systems rated for 180°C with spike-resistant magnet wire, complying with NEMA MG1 Part 31 standards to withstand high-frequency PWM voltage peaks from variable speed drives.
Custom Mechanical Coupling
NEMA dimensional shaft extensions, keyway splines (14-tooth, 15-tooth, ISO metric keyed shafts), and custom motor flange mountings tailored for seamless drop-in pump wet-end integration.
Submersible Motor Procurement & Technology Trends (2025–2030)
As global energy efficiency standards tighten and water scarcity drives deep-aquifer extraction, procurement directors must align with key technological developments altering the submersible motor landscape.
1. Shift Toward IE4 & IE5 Permanent Magnet Synchronous Motors (PMSM)
Traditional AC induction submersible motors face physical limits regarding rotor resistance thermal losses. The market is accelerating toward Direct-Current and Permanent Magnet Brushless Submersible Motors (PMSM) which achieve IE4/IE5 super-premium efficiency, operating with up to 15% lower electrical power consumption and reduced motor frame size.
2. Integration of Solar Direct-Drive DC Submersible Technologies
With rising fuel costs and remote agricultural expansion across Africa, Southeast Asia, and South America, high-voltage DC submersible pump motors (5kW to 45kW) designed for direct pairing with solar PV arrays are replacing diesel-generator driven pumps. Modern OEM designs feature built-in MPPT logic and wide voltage input windows (90V–800V DC).
3. Smart Condition Monitoring & Embedded IoT Sensors
Submersible equipment replacement involves substantial crane and labor expenditure. Modern procurement contracts increasingly mandate embedded PT100 temperature sensors, moisture ingress vibration detection sensors, and digital RS485 Modbus telemetry outputs directly from the motor terminal head to predict insulation breakdown before catastrophic failure occurs.
4. Anti-Clogging & High-Solids Wastewater Hydraulics
Urban municipal expansion requires submersible sewage pump motors equipped with integral tungsten-carbide cutting rings and non-clog vortex impeller drivers capable of shredding fibrous synthetic materials without stalling the motor rotor or causing stator thermal overload.
Century-Old Heritage Meets Precision Automated Production
Combining legacy engineering expertise dating back over 120 years with state-of-the-art CNC machining centers, automated copper winding machinery, and high-voltage Vacuum Pressure Impregnation (VPI) equipment, our factory delivers unmatched product integrity.
Every single motor assembled in our plant undergoes rigorous quality assurance testing prior to dispatch, including hydrostatic pressure testing up to 50 bar, dynamic balancing to ISO 1940 G1.0, surge testing, and full load temperature rise testing under submerged conditions.
Submersible Pump Motors Procurement FAQ
Addressing core engineering questions, application selection criteria, and custom manufacturing terms for strategic buyers and engineering consultants.
Water-filled submersible motors utilize deionized water mixed with propylene glycol for internal cooling and hydrodynamic bearing lubrication. They are environmentally non-polluting and ideal for deep well drinking water systems. They utilize specialized PE/PA wire insulation that can remain permanently submerged in water.
Oil-filled submersible motors use non-toxic dielectric mineral oil. The oil provides exceptional thermal conductivity, superior bearing lubrication, and prevents internal oxidation. Oil-filled motors generally provide higher starting torque and are widely utilized in heavy-duty sewage pumps, industrial drainage, and agricultural irrigation.
VFDs generate high-frequency pulse-width modulation (PWM) voltage waves. Due to the long cable lengths inherent in deep-well submersible installations (often 100m to 400m), voltage reflection phenomena can create high voltage spikes (dV/dt) exceeding 1500V at the motor terminals.
To prevent dielectric breakdown, our OEM VFD-duty submersible motors incorporate Class H spike-resistant magnet wire, reinforced phase insulation, VPI epoxy treatment, and optional sine-wave filters or insulated bearings to eliminate destructive shaft currents.
For fluids containing abrasive sand, grit, or corrosive chemicals, standard carbon-ceramic mechanical seals fail prematurely. We recommend dual mechanical seals featuring **Silicon Carbide vs. Silicon Carbide (SiC/SiC)** or **Tungsten Carbide vs. Tungsten Carbide (TC/TC)** on the primary fluid side.
This is combined with an oil buffer chamber equipped with a leak-detection probe to alert operators if fluid bypass occurs before water reaches the electrical stator chamber.
To deliver an optimized custom motor design, our engineering team requires:
- Electrical Specs: Rated Power (kW/HP), Operating Voltage, Frequency (50Hz/60Hz), Duty Cycle (S1 continuous), and Starting Method (Direct-on-Line, Star-Delta, VFD).
- Mechanical Specs: NEMA standard casing dimensions (4", 6", 8", 10", 12"), Shaft Spline specs, Flange mounting dimensions, and thrust bearing capacity requirement (kN).
- Environmental Specs: Submersion depth rating (meters), ambient liquid temperature (°C), solids concentration (%), and liquid chemical composition (pH level).
Every motor manufactured in our facility undergoes a standardized 5-step quality protocol: (1) High-potential insulation breakdown testing (Hi-Pot), (2) Stator surge comparison testing, (3) Dynamic rotor balancing according to ISO 1940 G1.0 standards, (4) Hydrostatic shell pressure testing at 1.5x maximum rated operating depth pressure, and (5) Helium mass-spectrometer leak detection on mechanical seal assemblies.
For standard OEM production runs using existing NEMA casing molds, our lead time is typically 3 to 4 weeks. For complete ODM custom design development (including custom stator laminations, shaft machining, and structural casting), initial prototype sampling takes approximately 4 to 6 weeks. Mass production MOQs vary depending on frame size—ranging from 20 units for large 6"-10" motors to 100 units for standard 4" borehole motors.
Request Custom OEM/ODM Engineering & Technical Catalogs
Partner with an established industrial motor manufacturer. Speak directly with our technical application engineers to receive custom 3D CAD drawings, hydraulic curve matching, and competitive wholesale quote packages.
