Featured Industrial Reciprocating Compressor Motors
Explore our catalog of heavy-duty, energy-efficient reciprocating compressor electric motors and specialized components manufactured for global industrial deployment.

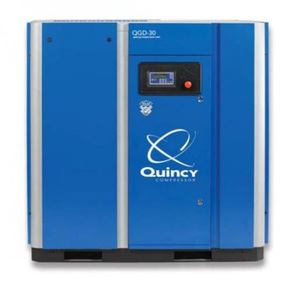

Quincy Motor De Aire QGD45-355 Industrial Compressor
High-efficiency heavy duty industrial drive motor designed for continuous duty compressed air systems.
Send an Inquiry
GMCC Rotary & Reciprocating Compressor Motor Unit
Compact, low-vibration precision motor optimized for commercial HVAC and refrigeration loops.
Send an Inquiry

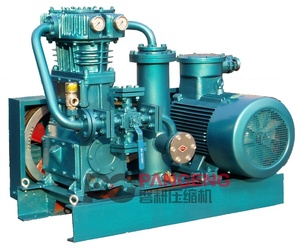

ZW-0.8/16-24 Oil-Free Double Row Reciprocating Motor
100% oil-free stationary motor engineered for high-pressure medical and food processing air demand.
Send an Inquiry

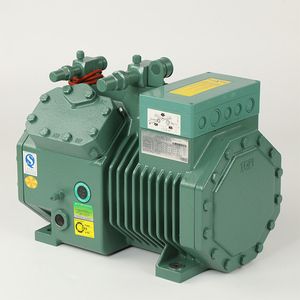

Semi-Hermetic Cold Room Reciprocating Compressor Motor
Heavy-duty cold storage motor built for continuous sub-zero refrigeration cycle reliability.
Send an Inquiry

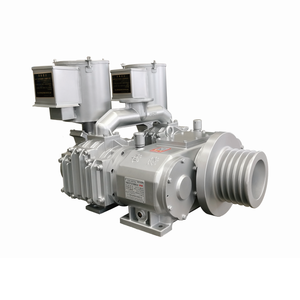

Bohai 380V Double-Cylinder Aluminum Oil-Free Motor
Rugged air-cooled pump motor designed for mobile site work and heavy-duty dual-drive rigs.
Send an Inquiry

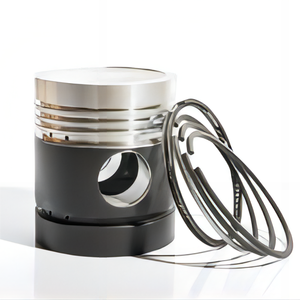

Cameron Ariel Cooper Reciprocating Compressor Ring Components
Precision engineered replacement piston rings for process gas and high-pressure compressors.
Send an Inquiry

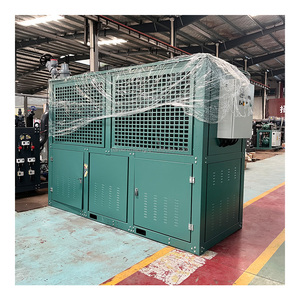

Industrial Cold Storage Energy-Efficient Compressor Motor
IE4 super-premium efficiency motor engineered specifically for industrial refrigeration duty.
Send an Inquiry
2KES-05 Series Semi-Hermetic Piston Reciprocating Motor
High stability OEM replacement motor for multi-stage refrigeration reciprocating compressors.
Send an InquiryEngineering & Manufacturing Principles of Industrial Reciprocating Compressor Motors
Reciprocating compressors (positive displacement compressors utilizing pistons driven by a crankshaft) represent one of the most mechanically demanding electric motor applications across heavy industry. Unlike continuous rotary screw or centrifugal compressors, reciprocating compressors subject the electric motor to severe cyclic mechanical loads, high peak torque fluctuations, harmonic pulsations, and extreme thermal stresses. Selecting or engineering an optimal electric motor from a trusted China Wholesale Reciprocating Compressor Motors Manufacturer & Exporter requires a thorough analysis of electrical design dynamics, mechanical insulation integrity, and torque characteristics.
High Starting & Breakaway Torque
Reciprocating compressors must frequently start under significant back-pressure or loaded conditions. Our custom motors incorporate specialized rotor bar configurations (NEMA Design C and Design D specifications) that deliver up to 250% to 300% locked-rotor torque without pulling destructive inrush current surges from the industrial power grid.
Pulsating Load Dampening
The reciprocating action creates periodic torque oscillations during suction and compression strokes. To prevent torsional resonance and premature shaft failure, our engineering team optimizes rotor inertia (WK² flywheel effect) and utilizes high-tensile alloy steel shafts designed to withstand millions of severe fatigue cycles.
Class H VPI Insulation Systems
Process gas compressors (handling natural gas, hydrogen, ammonia, or aggressive refrigerants) expose motor windings to chemical contaminants and elevated operating temperatures. We deploy Vacuum Pressure Impregnation (VPI) with Class H epoxy resins, certified to IEEE 429 and MIL-STD-2037 Navy-sealed standards.
Why Partner With Our China Manufacturing & Global OEM Network
Combining state-of-the-art Chinese manufacturing agility with a legacy of engineering excellence—drawing upon over a century of specialty motor manufacturing heritage—we offer global industrial buyers an uncompromised supply chain advantage. Our facilities operate under strict ISO 9001:2015 quality management systems, engineering Above-NEMA custom motors up to 20,000 HP as well as precision OEM replacement parts.
Advanced In-House Testing & Reverse Engineering
Whether you require a custom one-off replacement motor for a legacy installation or high-volume wholesale production runs, our facility houses comprehensive diagnostic, load-testing, and dynamic balancing capabilities. We specialize in "fit, form, and function" drop-in replacements for obsolete compressor motors, matching frame dimensions, shaft heights, mounting footprints, and electrical parameters exactly.
- Full Load & Vibration Spectrum Testing: Certified according to IEEE 112 Method B and NEMA MG1 standards.
- Hazardous Location Certification: Explosion-proof, ATEX, Class I Division 1 & 2 ratings for oil, gas, and chemical plants.
- Custom Voltage & Frequency Configuration: 380V, 460V, 2.3kV, 4.16kV, 6.6kV, 10kV at 50Hz or 60Hz.
Technical Comparison Matrix: Compressor Motor Architecture
To assist procurement specialists and plant maintenance managers in technical evaluation, the following matrix outlines key electrical and mechanical parameters across reciprocating compressor motor types:
| Motor Classification | Power Range (HP / kW) | Starting Torque Ratio | Insulation Standard | Cooling Method (IC Code) | Primary Application Sector |
|---|---|---|---|---|---|
| Semi-Hermetic Piston Motors | 0.5 HP – 75 HP | 220% – 280% | Class H / Refrigerant Sealed | Suction Gas Cooled / IC71W | Cold Storage, Commercial HVAC |
| Oil-Free Double-Row Air Motors | 5 HP – 250 HP | 250% – 300% | Class F / Class H VPI | Air Cooled TEFC / IC411 | Pharma, Food & Beverage, Medical Air |
| Explosion-Proof Process Gas Motors | 50 HP – 5,000 HP | 200% – 260% | Class H VPI (MIL-SPEC) | Pipe Ventilated / TENV / IC37 | Refineries, Natural Gas Pipeline Boosters |
| High-Voltage Synchronous Motors | 1,000 HP – 20,000 HP | 180% – 240% | Class H Micadur / VPI | Water-Air Cooled TEAAC / IC611 | Petrochemical Synthesis, Ammonia Plants |
Future Procurement Trends in Reciprocating Compressor Motors (2025–2030)
As global industrial operators face escalating electricity tariffs and stringent carbon reduction mandates, B2B purchasing strategies for industrial motor drives are undergoing a structural shift. Buying decisions are no longer dictated solely by initial capital expenditure (CAPEX); total operational cost (OPEX) over a 20-year lifecycle now governs enterprise procurement.
1. Mandatory Transition to IE4 & IE5 Efficiency
Global regulatory frameworks (EU Ecodesign Stage 2, China GB18613-2020 Grade 1) are enforcing IE4 (Super-Premium) and IE5 (Ultra-Premium) efficiency thresholds. Advanced permanent magnet synchronous reluctance motors (SynRM) and line-start permanent magnet (LSPM) motors are replacing standard induction motors in heavy reciprocating compressors, reducing energy loss by up to 15% to 20%.
2. Deep Integration with VFDs & Smart Sensor Arrays
Variable Frequency Drives (VFDs) allow reciprocating compressors to dynamically adjust speed according to gas demand rather than cycling on/off. Modern wholesale motors are equipped with inverter-duty Class H wire, insulated bearings (to prevent shaft current erosion), and embedded IoT sensors (Pt100 RTDs, tri-axial vibration accelerometers) for real-time predictive maintenance.
3. Green Hydrogen & Clean Energy Gas Compression
The rapid expansion of the hydrogen economy requires reciprocating compressors capable of operating at extreme pressures (up to 350 to 700 bar). Motors driving hydrogen fueling station compressors must maintain non-sparking, hermetically sealed, explosion-proof integrity while enduring continuous stop-start torque cycling.
Technological & Material Innovation Trends
To meet the extreme operational demands of modern process industries, motor design and metallurgical engineering continue to evolve. Leading manufacturers in China are combining high-grade raw materials with robotic precision automated production lines to deliver superior motor reliability.
Ultra-Low-Loss Silicon Steel Stators
Utilizing cold-rolled non-oriented silicon steel (CRNGO) laminations with thicknesses as fine as 0.35mm to 0.27mm significantly reduces eddy current hysteresis losses, improving overall electromagnetic efficiency and reducing thermal buildup.
Ceramic & Hybrid Insulated Bearings
VFD-induced high-frequency electrical discharge currents cause fluting damage in standard steel bearings. Incorporating silicon nitride (Si3N4) ceramic rolling elements or plasma-sprayed aluminum oxide insulating coatings eliminates electrical pitting.
Advanced Finite Element Thermal Analysis
Using 3D Computational Fluid Dynamics (CFD) and Finite Element Method (FEM) software, housing cooling fins and internal airflow passages are computationally optimized to maximize heat dissipation and prevent localized hot-spots.
Compressor Motor Failure Modes & OEM Mitigation Strategies
Operational downtime in chemical refineries or cold chain logistics facilities can result in substantial financial losses. Understanding standard failure root causes enables procurement teams to specify built-in engineering protections during product sourcing.
| Common Failure Mode | Primary Root Cause | Factory Engineering Mitigation Feature |
|---|---|---|
| Stator Winding Insulation Breakdown | Thermal overload, chemical gas ingress, high voltage spikes from VFD fast-switching (dV/dt). | Vacuum Pressure Impregnation (VPI) with Class H corona-resistant magnet wire and dual-layer slot liner insulation. |
| Rotor Bar Cracking & Fatigue | Torsional vibration harmonics and severe thermal expansion during repetitive heavy starts. | Fabricated copper/copper-alloy rotor bars silver-brazed to heavy-section end rings or cast-aluminum trapezoidal bars. |
| Shaft Fatigue & Keyway Shear | Peak dynamic shock loads from liquid slugging or cylinder unbalance in reciprocating pumps. | Forged alloy steel shafts (AISI 4140/4340) with stress-relieved radii fillets and precision dynamic balancing (<0.5 mm/s). |
| Bearing Seizure & Fluting | Inadequate lubrication under high radial load or stray shaft currents induced by VFDs. | Insulated non-drive end bearings, shaft grounding rings (SGR), and automatic re-greasing nipples with synthetic high-temp grease. |
Frequently Asked Questions for Global Procurement & OEM Engineers
What is the main difference between a motor designed for a screw compressor vs. a reciprocating compressor?
Rotary screw compressors operate with uniform, continuous rotational torque, whereas reciprocating compressors produce severe pulsating torque loads due to the back-and-forth stroke of pistons. Motors for reciprocating compressors require higher locked-rotor starting torque (NEMA Design C/D), enhanced rotor inertia (higher WK²), reinforced mechanical shafting, and heavy-duty VPI stator insulation to withstand cyclic shock forces.
Can your China factory manufacture exact drop-in replacements for legacy American or European compressor motors?
Yes. We specialize in custom reverse engineering and custom dimension matching. Our engineering team can replicate mounting bolt footprints, shaft extension diameters, keyway dimensions, terminal box locations, and voltage/frequency specifications for legacy brands (such as Louis Allis, Quincy, Cameron, Ariel, Bitzer, and Cooper) while upgrading internal insulation to modern Class H VPI standards.
How do you ensure electric motor reliability in hazardous petrochemical or explosion-proof environments?
Our explosion-proof reciprocating compressor motors are engineered and tested in accordance with international safety standards including ATEX, IECEx, and Class I, Division 1 / Division 2 (Groups B, C, D). They feature heavy flame-proof cast iron or welded steel enclosures, precision machined flame paths, internal flame arrestors, and certified IP66/IP67 ingress seals.
What documentation and quality certifications accompany wholesale compressor motor shipments?
Every shipment includes complete factory routine test reports (winding resistance, insulation resistance/megger, high-pot testing, no-load current), dynamic balance balance certificates, material mill test reports (MTR), ISO 9001 compliance documentation, and full maintenance/operation manuals. Type test reports and full load performance curves are provided upon request.
How does buying direct from a Chinese manufacturer impact procurement lead times and cost efficiency?
Direct OEM sourcing eliminates intermediary distributor markups, reducing overall motor capital expenditure by 25% to 40% while giving engineering teams direct technical access to motor designers. Our flexible manufacturing lines enable rapid prototyping for custom orders and streamlined sea/air freight logistics across Europe, North America, the Middle East, and Southeast Asia.
Request a Custom Quote or Engineering Consultation
Partner with an industry-leading China wholesale manufacturer & global exporter of high-performance reciprocating compressor motors. Contact our application engineers today to discuss custom horsepower, frame sizing, voltage requirements, or drop-in replacement projects.
